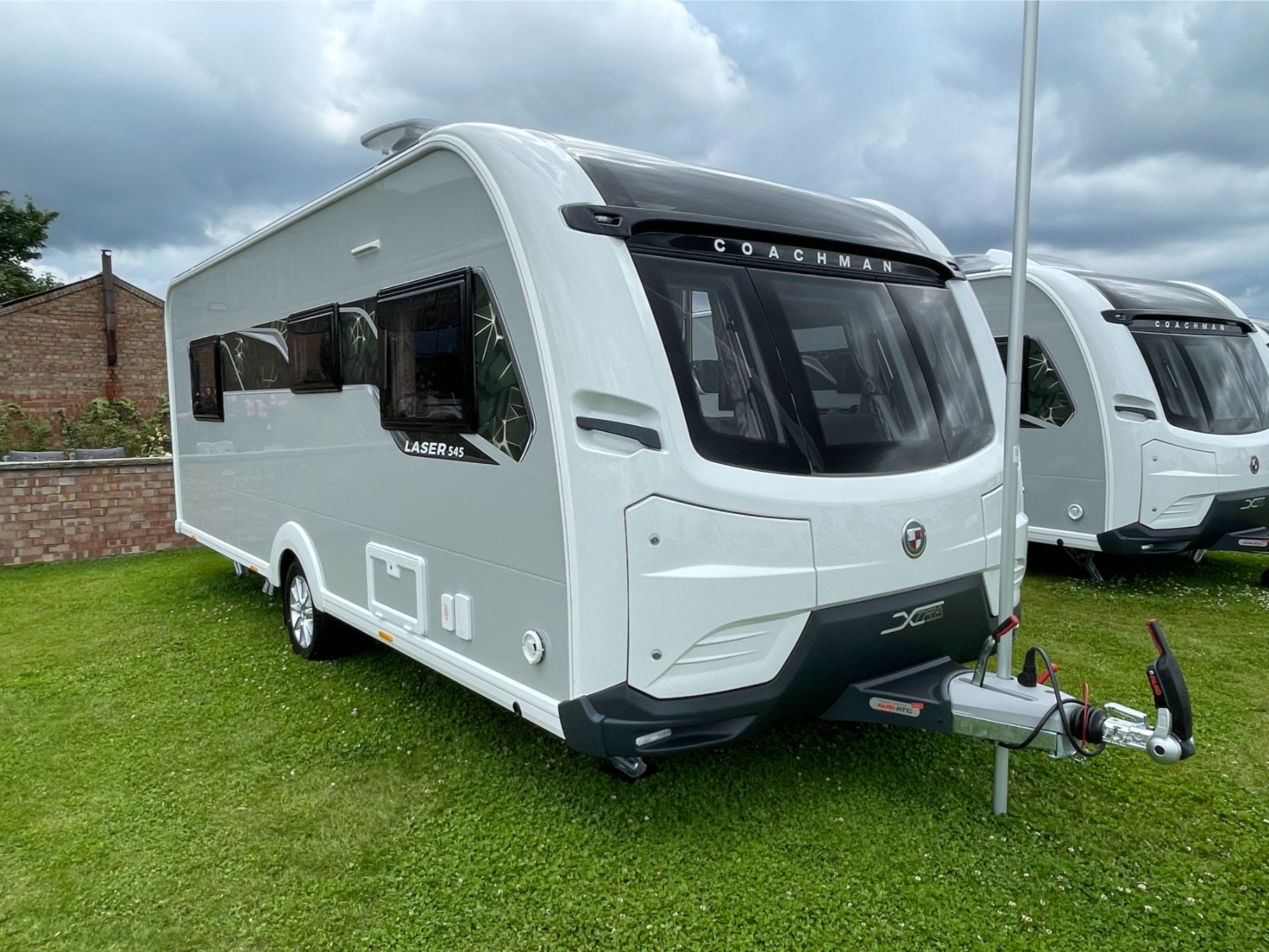

Coachman Laser 545 Xtra (2025) – Display Model

The Coachman Laser collection continues to represent the pinnacle of touring excellence. This flagship range of Coachman caravans continues to lead in its specifications and luxurious touches you’d usually only find in domestic living. Excellent for long stays and short trips alike, each Laser caravan guarantees a home-on-wheels you’ll just love to return to.

For 2025 all 3 models have been carried across including the 665 Xtra that has been renamed 865 XTra to keep in sync with the other models. What other models you ask? Well there are 3 new models in the Laser range that may have seen before… That’s because they were in the Laser Xcel range but they’ve been renamed and now under wing of the Laser range. that is because the Laser Xcel range had been dropped for 2025, but there is a valid reason. The Laser range provides more flexibility to the consumer when it comes to optional extras, whilst the Laser Xcel had specification such as the E&P Self-Levelling as standard, forcing customers to pay for a feature that may not be on consumers list of priorities. Having 3 models fall into the Laser range allows the caravan to be cheaper with the removal of the Laser Xcel standard features.

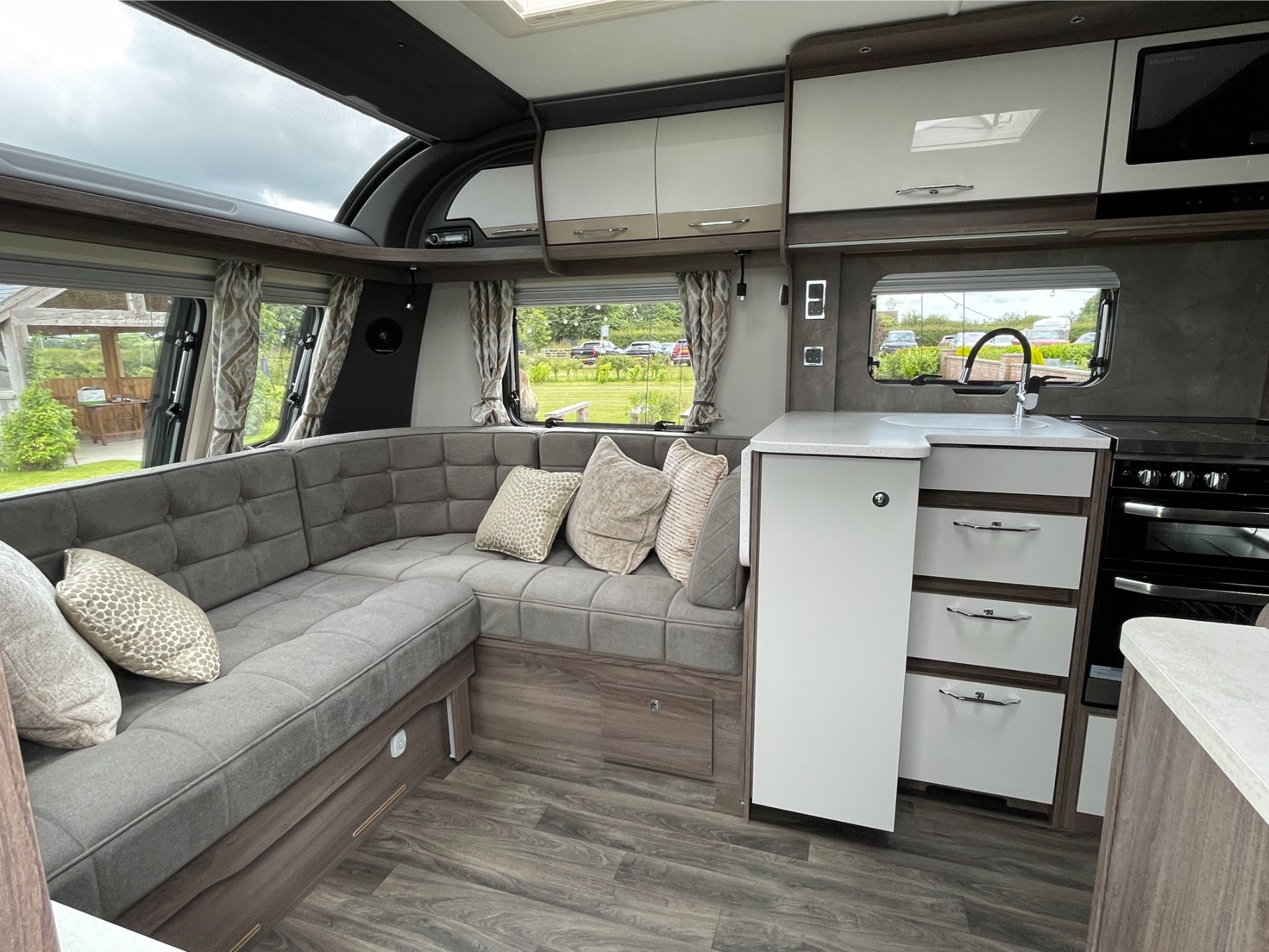

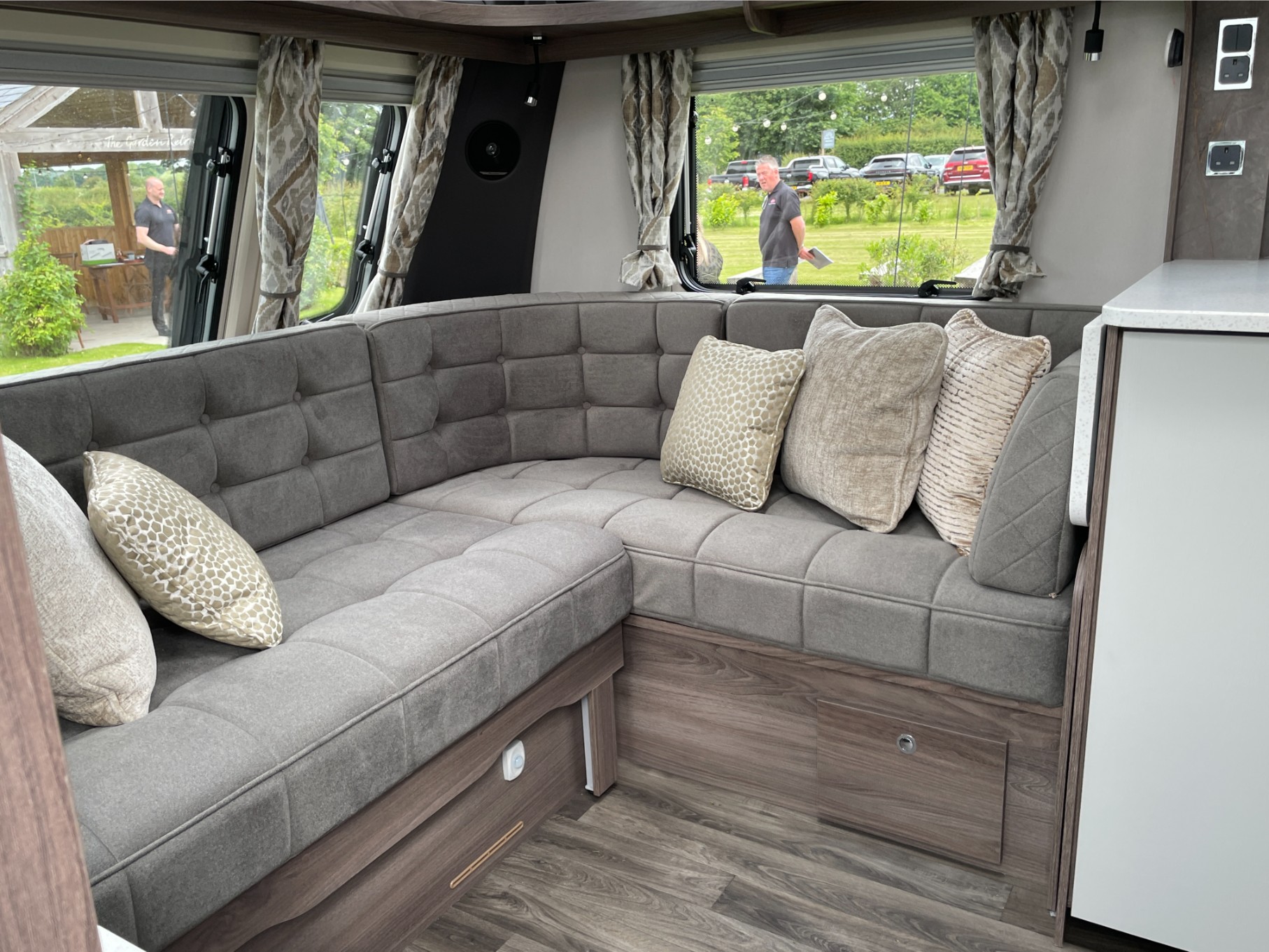

The Coachman Laser 545 Xtra is a caravan you don’t find often. It’s a rear island bed with a L-shaped lounge. Comfort is truly maximised with this layout, and it’s perfect for both couples and families up to 4 people. This particular layout if perfect for bringing the kids or grandkids along.

What’s New For 2025 For The Laser Range?

• Amended layouts In the Laser 845 Xtra
• Renamed models in laser 855 Xtra, 865 Xtra & Laser 875 Xtra
• Laser Xcel has been dropped as a range and models have merged into the Laser range meaning E&P Self-Levelling is now an optional extra rather than standard specification.
• New superior one piece exterior door with high security locking system and easy action flyscreen.

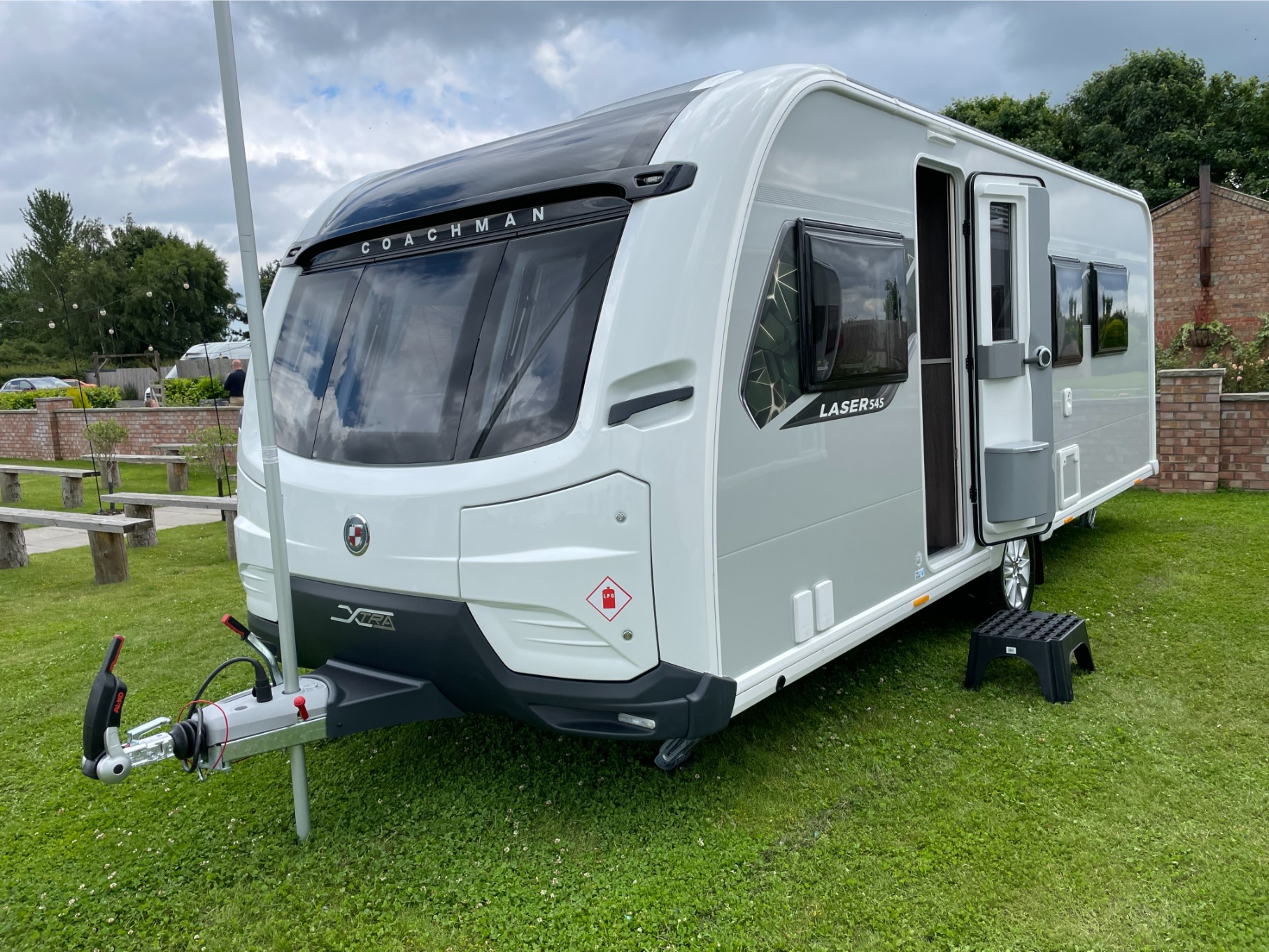

External Features

• European Whole Vehicle Type Approved (EWVTA)
• EN1645 Grade 3 classification for heating and insulation – cold chamber tested
• Enhanced automotive style, fully bonded aerodynamic body shell
• Exterior side walls in ‘Silver Grey’ finish with ‘Silver Grey’ exterior door
• AL-KO, galvanised steel chassis with euro axle, overrun device and easy action handbrake
• Screwless, fully bonded awning rail to both sides
• 25mm aluminium sandwich sidewall construction with polystyrene insulation core
• 25mm sandwich construction roof for added strength and insulation
• 45mm sandwich construction floor with internal bracing for added strength
• 13 pin car ‘Jaeger’ connector
• ABS front panel incorporating, integral grab handles, fixed panoramic roof window, 3 flush fitting opening front windows and dual integrated front lockers for gas and storage with gas strut retainers
• ABS rear panel with white integral grab handles, high level brake light and light clusters
• Step-on hitch cover with tread plates for easy cleaning of front windows
• AL-KO hydraulic jacking kit (665 Xtra)
• 10 spoke, hyper silver ‘Falcon’ alloy wheels and mud flaps
• Underslung AL-KO spare wheel carrier complete with steel spare wheel
• Mobile waste water carrier
• 3D exterior graphics
• Shock absorbers for smoother towing
• Heavy duty corner steadies for increased stability
• ‘Primo’ range Polyplastic double glazed opening side windows
• LED awning light and off-side services light
• Front nearside access locker (Model specific)
• Additional under bed access locker (575 Xtra & 855 Xtra, 865 Xtra and 875 Xtra)
• Whale exterior cold shower
• Whale external gas BBQ point with Easi-Slide lid
• Whale 230 volt external mains socket with Easi-Slide lid
• Exterior access battery box with mains electric inlet and external satellite and aerial connections
• New superior one piece exterior door with high security locking system and easy action flyscreen
• Entrance step
• Whale bulkhead mounted gas regulator for use with butane or propane gas bottles, supplied with flexible hose for propane

Interior

• Smooth action mechanism Softrollo pleated blinds with flyscreens to all windows
• Premium high quality fabrics
• New Superior sprung construction upholstery to all models
• Quality foam construction mattresses (fixed beds)
• Retractable bed in the 545 Xtra, 575 Xtra, 845 Xtra, 855 Xtra and 875 Xtra giving even more freedom to walk around
• Wider fixed single beds in the rear bedroom (865 Xtra)
• Soft furnishings with hight and more supportive backrests, co-ordinating scatter cushions and sculptured armrests
• Domestic floor covering in ‘French Oak-Dark Grey’ design
• Wood colour scheme in ‘Leander’
• Surface mounted drop down flap fitted to the nearside seating entrance end panel (model specific)
• Contemporary two toned cranked style locker doors in ‘Leander and ‘Pebble’ to the lounge and bedroom with soft close hinges
• Stylish polished chrome finish furniture handles
• Overhead locker profile in ‘graphite’ design with decorative silver trim and LED layered lighting
• LED layered lighting
• Centre console in ‘graphite’ design with integrated down lighting
• Dovetail joints and metal runners all to drawer units
• Colour co-ordinated sockets and switches with chrome surrounds
• Easy action sliding pull out front bed make up mechanism (excluding 545)
• Easy action aluminium framed sliding front bed make up mechanism (545)
• Easy access aluminium lift up bed frames, gas strut supported with sprung beech slats
• Contoured front chest of drawers with slide out extending table top mechanism
• Large, lightweight, free standing table with dedicated storage area
• Seating and bed ventilation boards throughout
• Removable entrance mat with tray
• Shelving in selected overhead lockers
• Midi roof light to front lounge and fixed bed areas

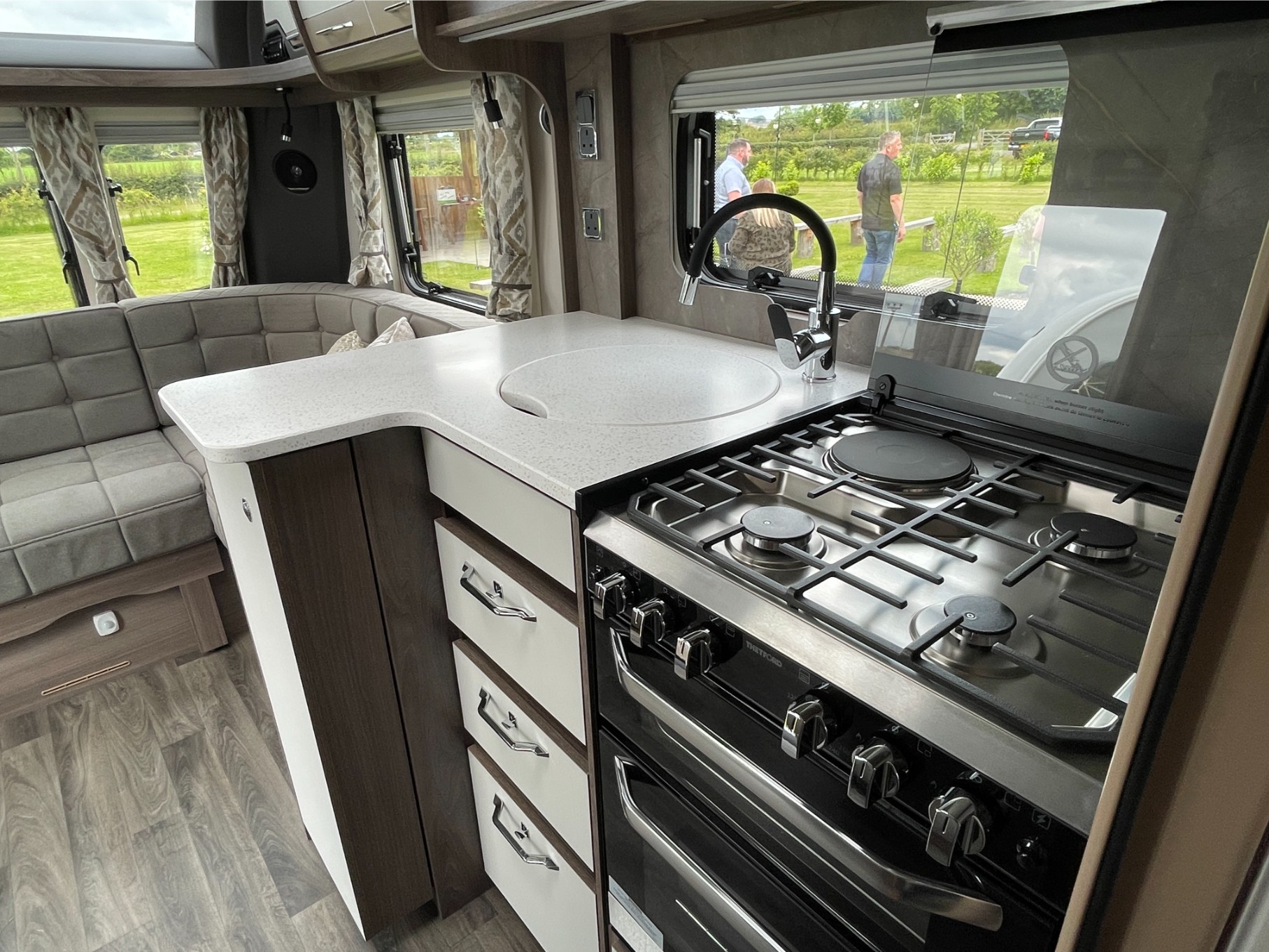

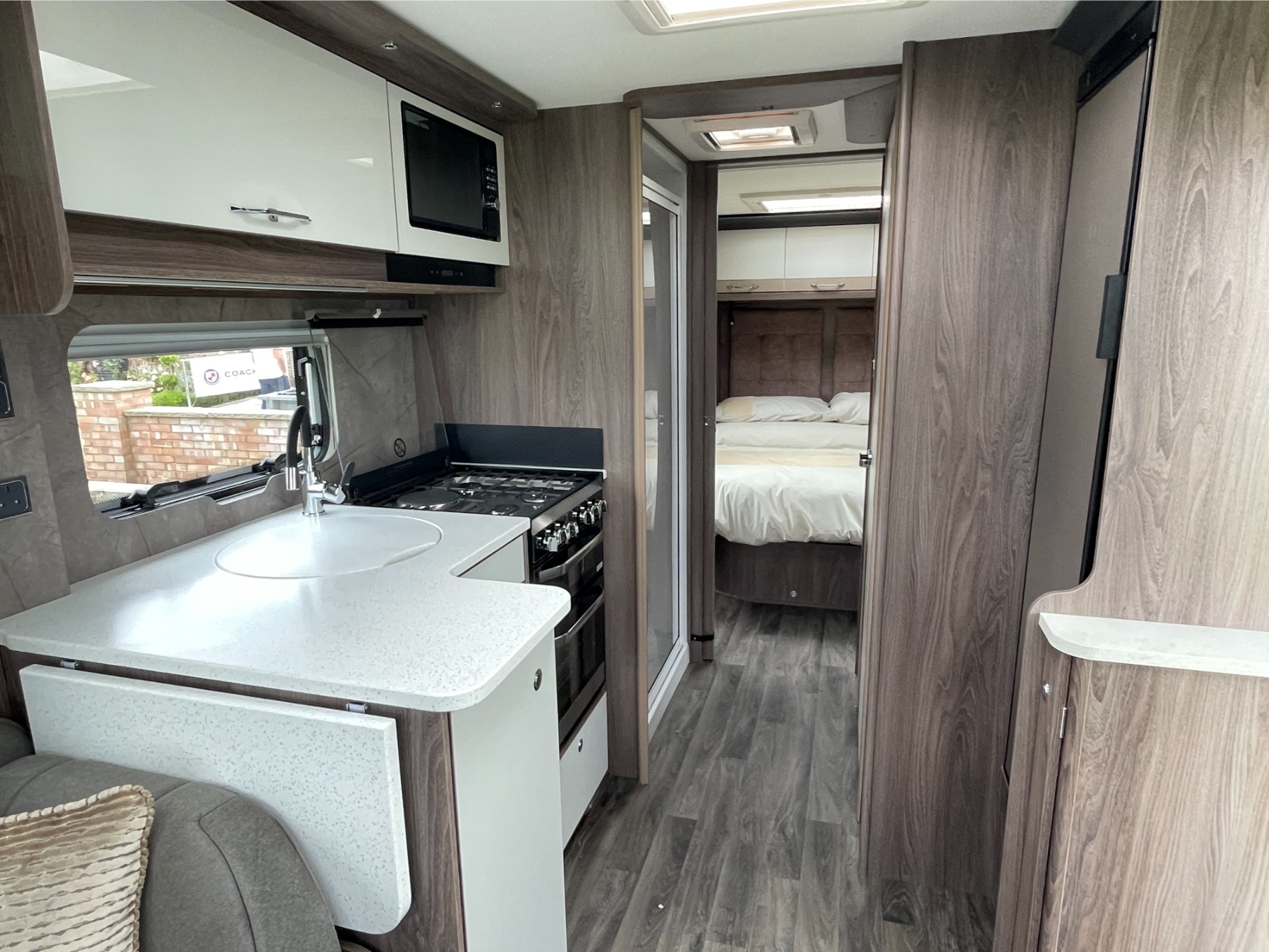

Kitchen

• Under locker mounted extractor fan
• Mini roof light
• Kitchen splashback in ‘Kaspio Ora’ design with integrated smooth action mechanism Softrollo pleated blind and flyscreen
• Thetford round stainless steel underslung sink with worktop/flush fitting bowl infill
• Flatbed ventilated microwave oven with co-ordinating flush fitting acrylic housing unit ‘Nebbia’
• Domestic style flexible chrome and black kitchen tap
• Kitchen design with increased workspace and deeper cupboards
• Composite surface kitchen worktops in ‘White Pebble’ design finish
• Larger lift up kitchen worktop extension
• Thetford dual fuel hob with cast iron pan rest, electronic ignition, glass lid and flame failure device
• Thetford oven has an interior light and separate grill with chrome finish and improved efficiency
• LED touch sensitive dimmable under surface and locker ambience enhancing lighting
• Kitchen wider upper locker door in ‘Nebbia’ acrylic with soft close hinges
• Positive catches to main kitchen drawers
• Pull out chrome baskets to lower kitchen cupboards
• Thetford N4145 159 litre electronic fridge freezer (845 Xtra, 855 Xtra, 865 Xtra & 875 Xtra)
• Thetford N4142 137 litre electronic fridge freezer (545 Xtra & 575 Xtra)

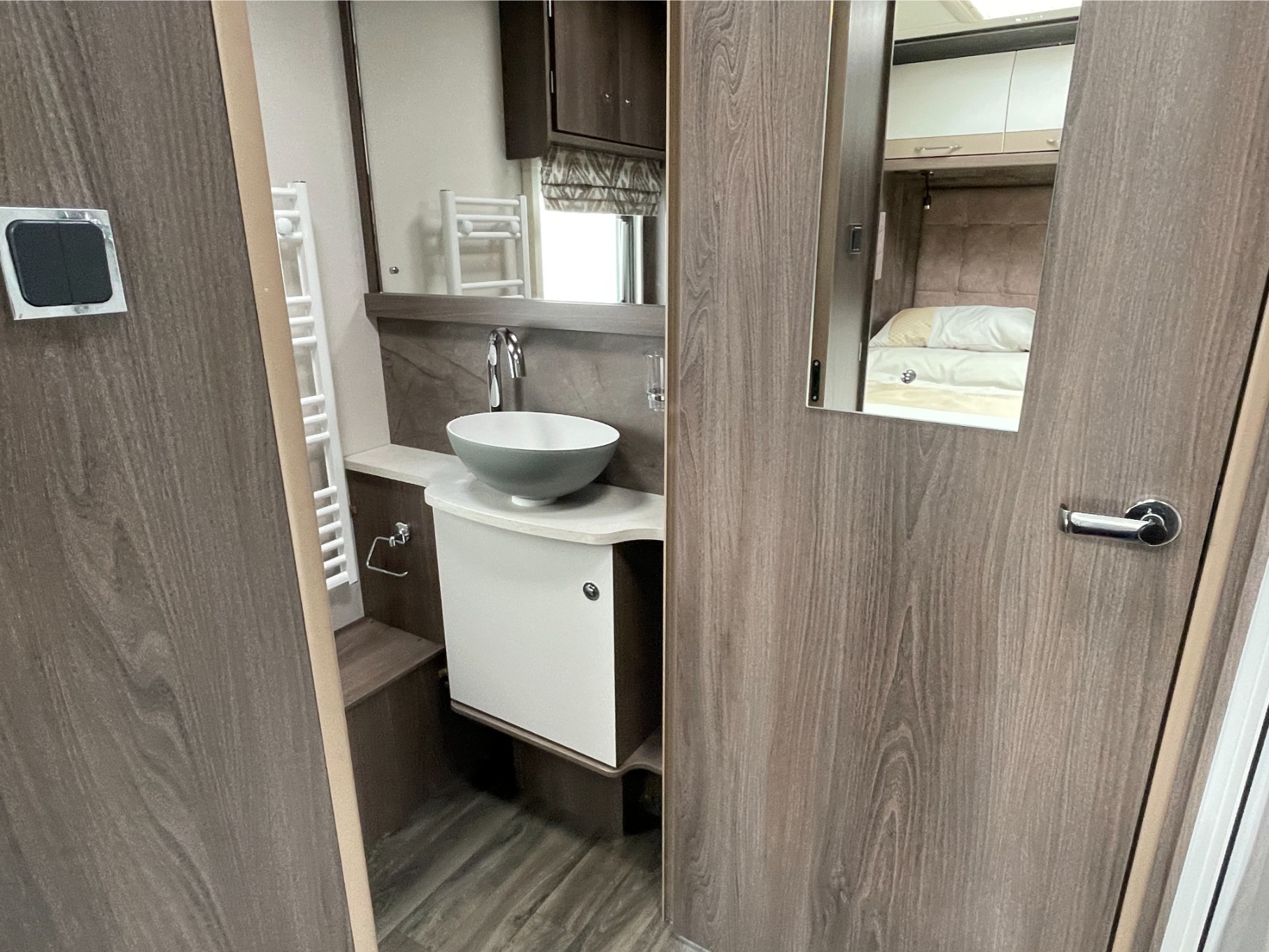

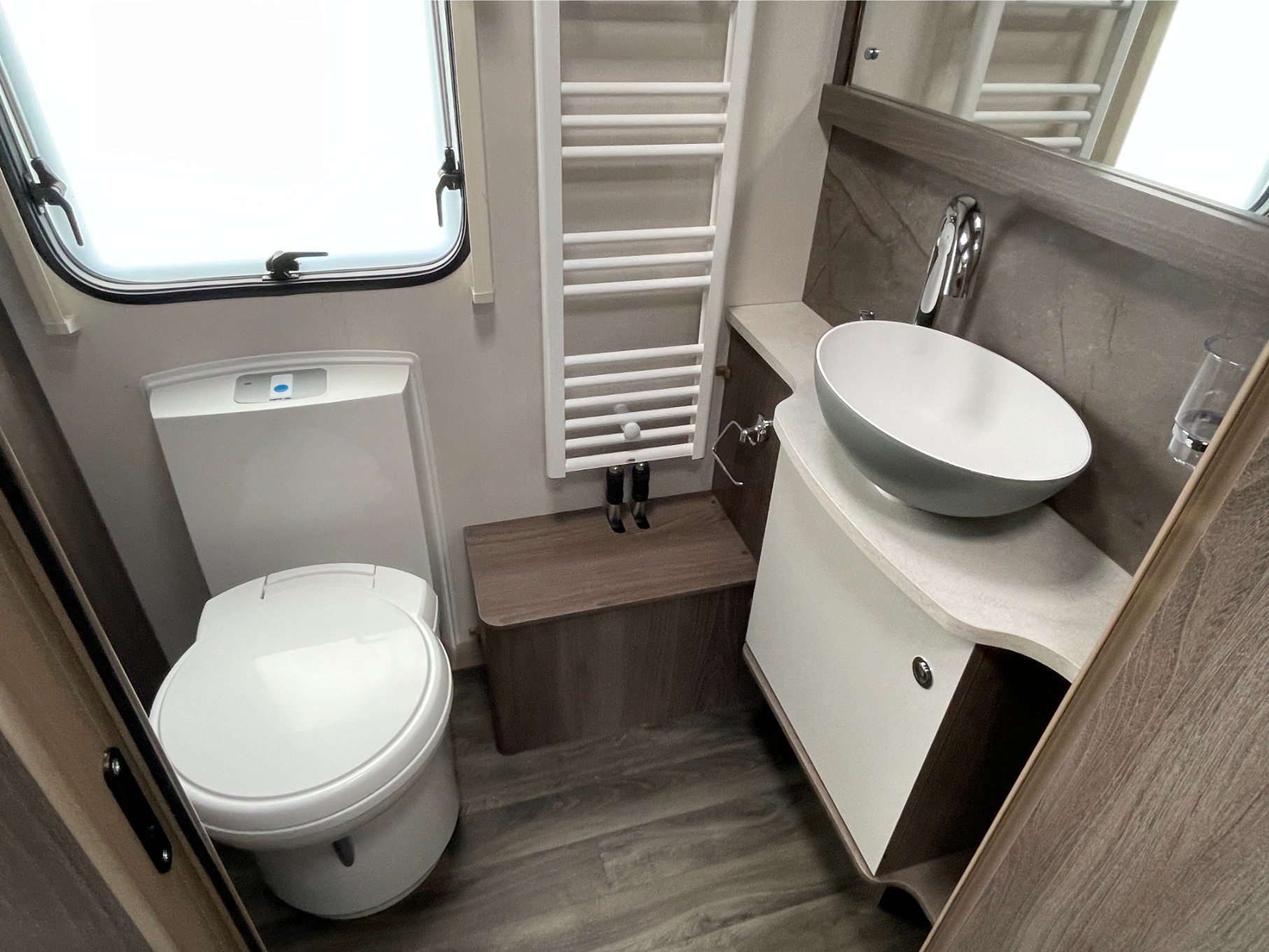

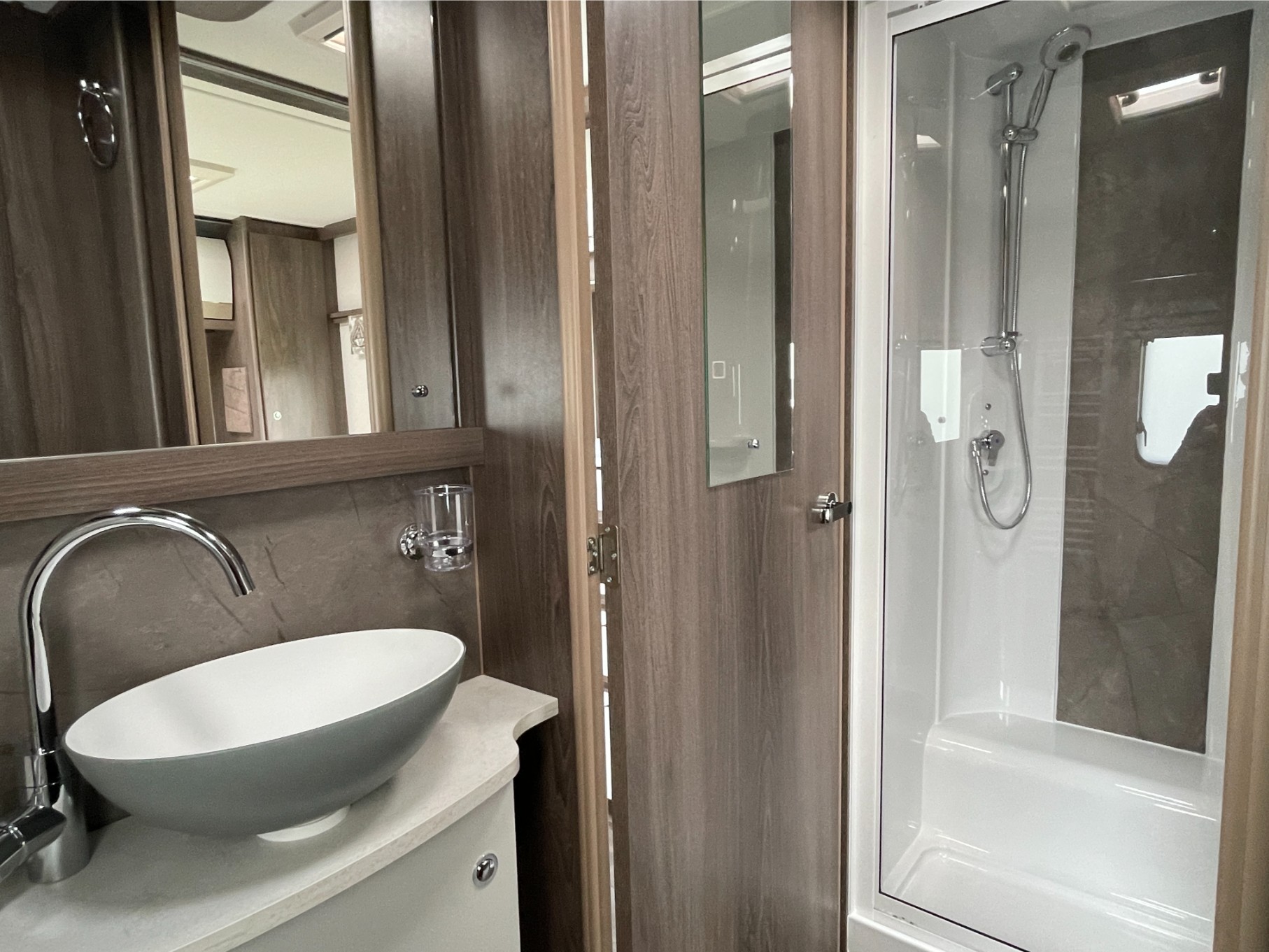

Bathroom

• White domestic style ladder radiator in bathroom
• Luxurious fully lined domestic style square shower cubicle with built in contrast panel, storage, LED downlight and pivot door
• Folding hanging hook in the shower area
• Comet shower mixer tap
• Chrome finish bathroom fittings
• Thetford C262 swivel toilet with electric flush and wheeled waste container
• Mini roof light in end bathroom models (model specific)
• Opaque window to all bathrooms
• Smooth action mechanism Softrollo pleated blind with flyscreen to bathroom window
• Domestic style bathroom door handles with retractable magnetic lock (model specific)
• Feature panel on the bathroom door (model specific)
• Vanity splashbacks in ‘Kaspio Ora’ design
• Vanity worktops in ‘Raja’ design
• Vanity chrome ceramic tap
• Contemporary dual coloured co-ordinated oval top mounted vanity bowl
• Stylish curved vanity unit

Electrical

• Multi directional matt black LED reading spot lights with USB ports to all areas
• LED down lighter spot lights
• 100% low energy LED lighting throughout
• Floor level courtesy lighting
• Alde load limiter
• Mains connection lead (25m)
• 12 volt system (20 Amp) with battery charger and mains transformer
• 12 volt ‘Seattle’ multi-function digital control panel with awning light, water pump, water tank, 12v lights and master switches
• Additional socket located in the bedroom in the 665

Audio / Entertainment

• DAB radio with entertainment speakers in lounge and bedroom areas
• Dedicated TV station with 230v, 12v, satellite and aerial sockets
• Dedicated TV station with 230v, 12v, and aerial sockets in fixed bed areas
• Double USB socket and ‘C’ port socket situated at the main dedicated TV station
• Mobile phone charging unit (integrated into the bulkhead) suitable for iPhone 8 & Samsung 7 and above
• Integral USB socket in matt black spotlights to all areas
• Teleco Teleplus TV aerial with integrated FM/DAB reception capability

Plumbing & Heating

• Alde wet central heating and hot water system with 5 year Glycol, 3030 boiler with integrated pump and programmable LCD touch screen control panel
• Whale Water Master mains connection
• Whale Watermaster inlet point – intelligent control with high flow submersible pump
• NEW 40 litre onboard fresh water tank

Safety & Security

• AL-KO AKS 3004 Stabiliser and Active Trailer Control (ATC 2) system
• AL-KO secure wheel locks (545 Xtra & 575 Xtra)
• 2 x AL-KO secure wheel locks (845 Xtra, 855 Xtra, 865 Xtra & 875 Xtra)
• Phantom VanGuard remote control alarm system with PIR and tilt sensors for added security (fob controls the awning light)
• Optical smoke alarm
• Carbon monoxide detector
• CRIS ID number and concealed security data ID chips
• High security one key locking system supplied with 2 flip keys
