Bailey Phoenix Black Edition 644 (2026)

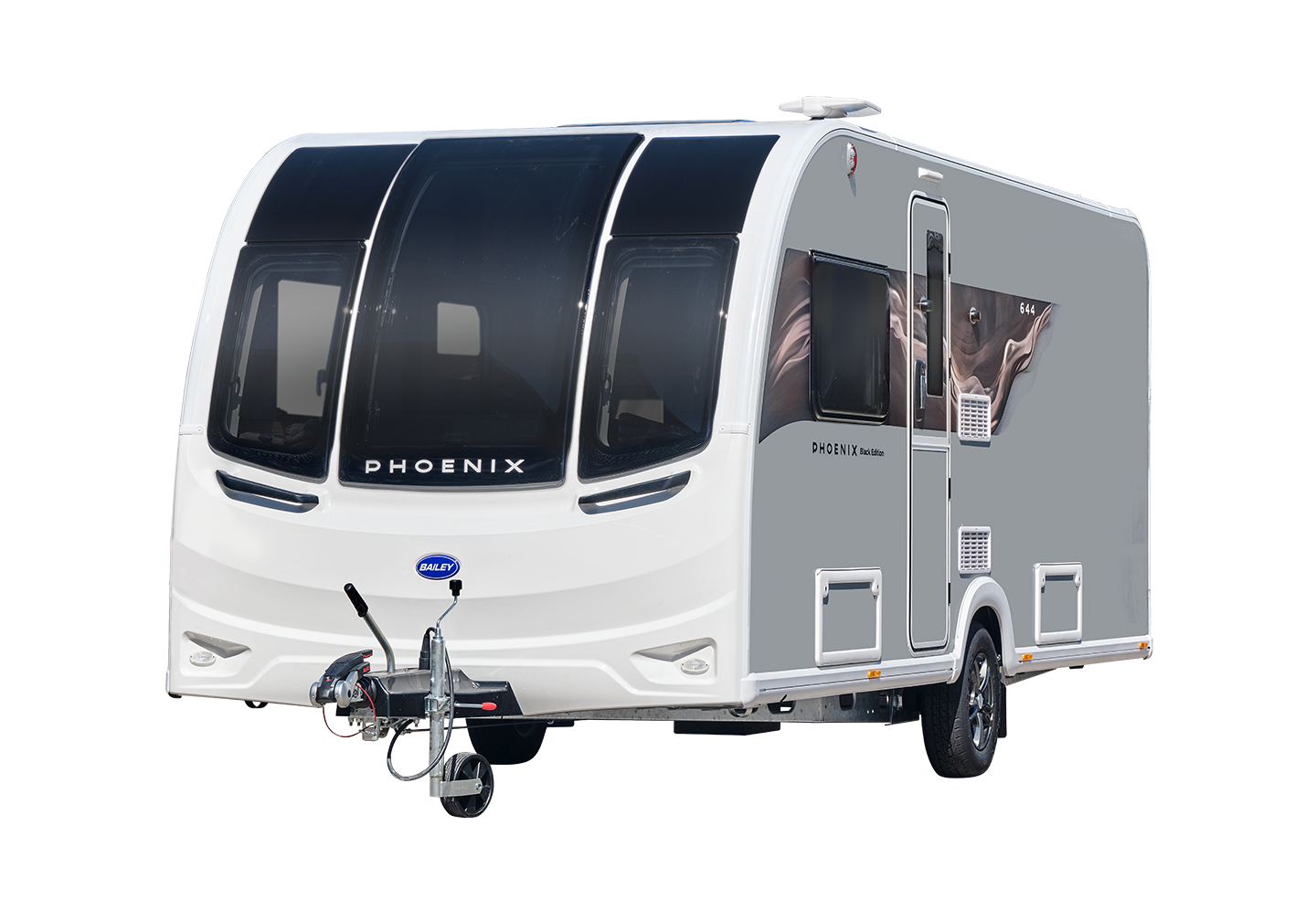

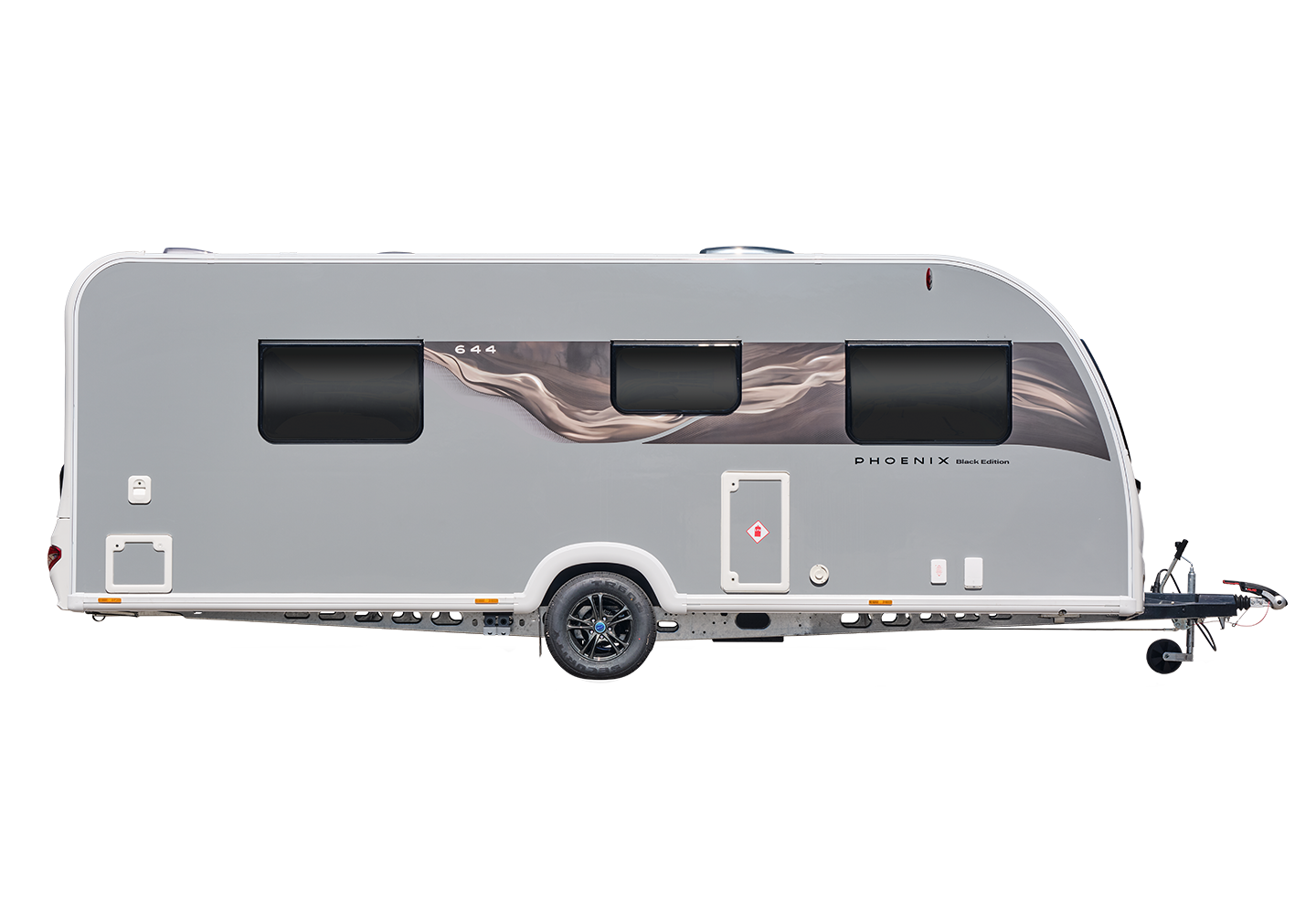

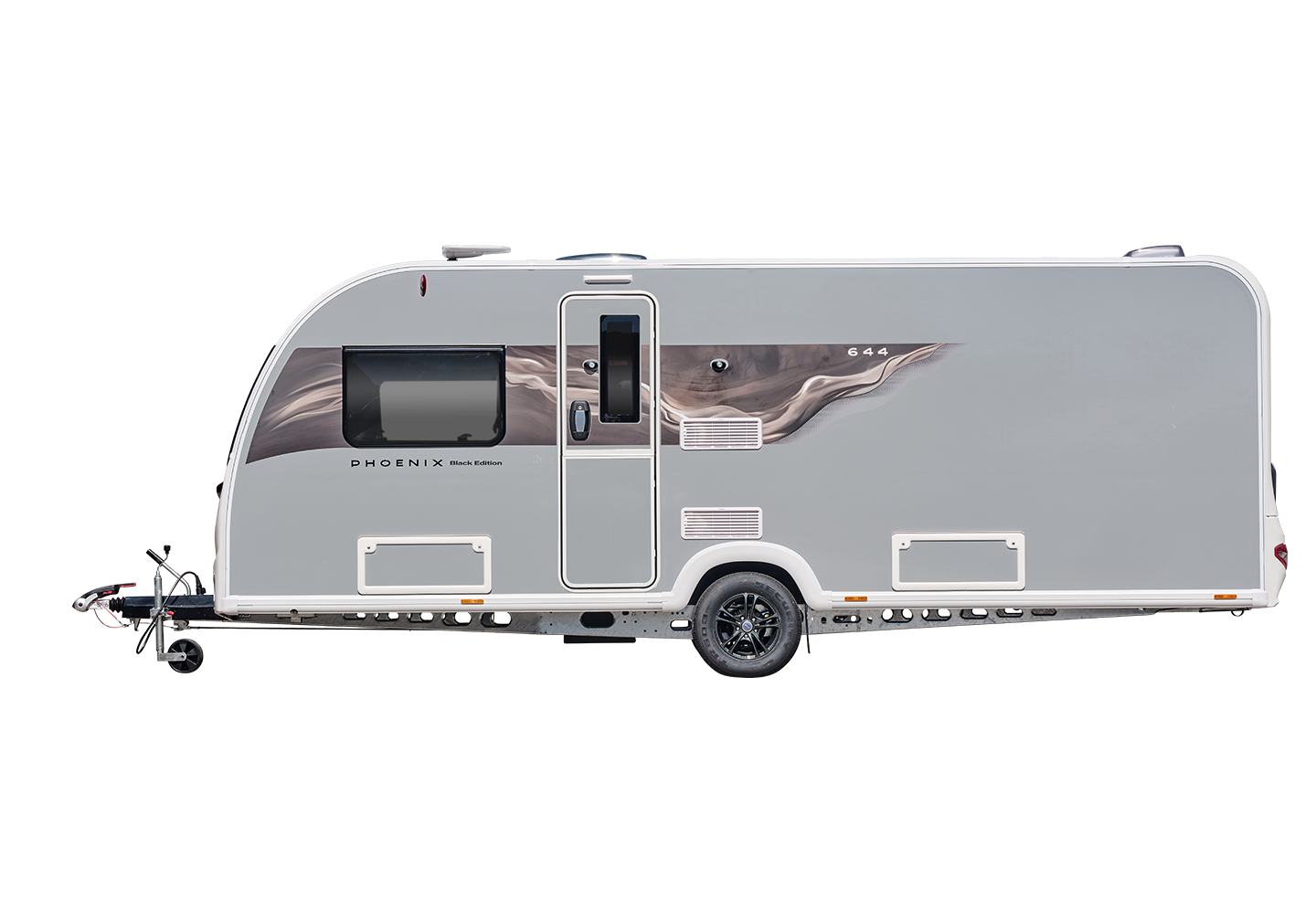

• Aerodynamic GRP skinned ‘Polar White’ and ‘Dove Grey’ Alu-Tech bodyshell
• Contrasting purple and black exterior graphics scheme with resin badging
• Structural interlocking aluminium extrusion framework with no external fixing points and concealed awning channels on both sides
• NEW Aerodynamic front profile with curvature
• Upper body panels manufactured using superior bead application laminating technology for a stronger more consistent bond
• Upper body panels built using a timber free construction, incorporating a composite plastic internal skeleton, a polystyrene insulation core and a GRP inner wall lining
• Upper body panels cloaked in a single sheet impact resistant GRP outer skin for extra durability
• NEW Floor panel construction with a vinyl-covered underside for greater protection against the elements (as featured on current Unicorn & Alicanto)
• EN-1645-1 Grade III classification for heating and thermal insulation, for all-year round usage, confirmed by cold chamber testing

• AL-KO one-piece galvanised steel chassis, braking system, running gear and corner steadies
• NEW ‘Black’ 14” TUV tested alloy wheels with premium branded tyres
• Single piece front impact resistant bumper with integral grab handles and step-up a-frame fairing
• Single piece rear impact resistant bumper with integral grab handles and light clusters
• NEW Hartal two-part habitation, window, waste bin and pleated full-length door flyscreen
• LED awning light above external door

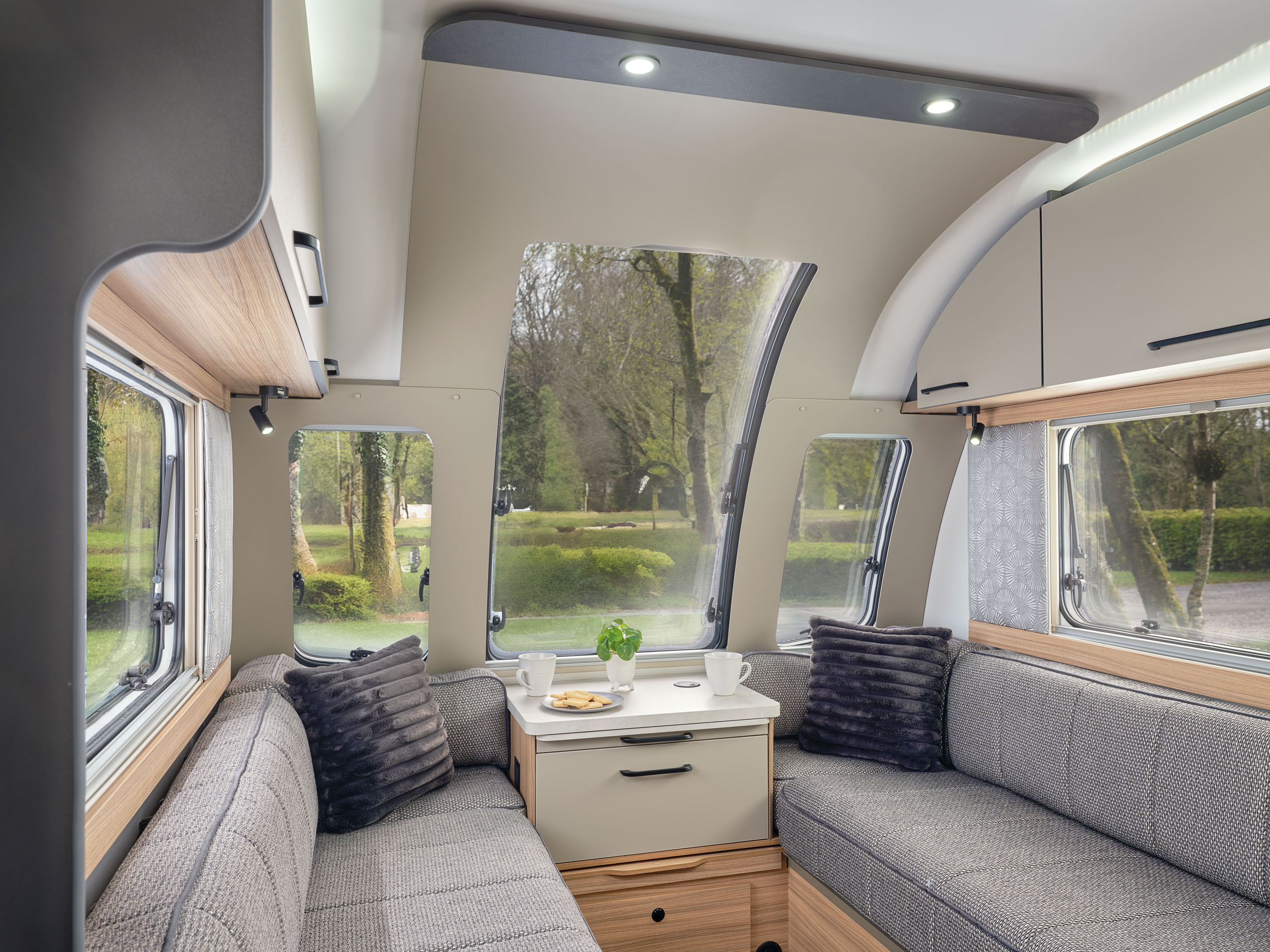

• Poly-plastic double glazed opening vertical front infinity window and Polyplastic double glazed front side windows
• Poly-plastic double glazed windows throughout the habitation area
• Remis pleated blinds and flyscreens throughout the habitation area
• Remis splash proof roller blind to kitchen window
• Midi and mini Heki rooflights located throughout the habitation area
• Exterior access storage locker
• Exterior access centrally mounted gas locker for enhanced towing stability and reduced nose weight
• NEW sepia and black exterior graphics scheme with resin badging

• NEW Bailey ‘Light Oak’ and ‘Stone Grey’ furniture finishes
• NEW Bailey ‘Stone Grey’ overhead locker doors with matt black detailing and handles
• Spacious overhead storage lockers with structural dividers for greater load bearing capacity
• NEW Premium quality matt black finish fixture and fittings
• NEW Standard ‘Echo’ soft furnishings with co-ordinating curtains, two bolster cushions and two scatter cushions

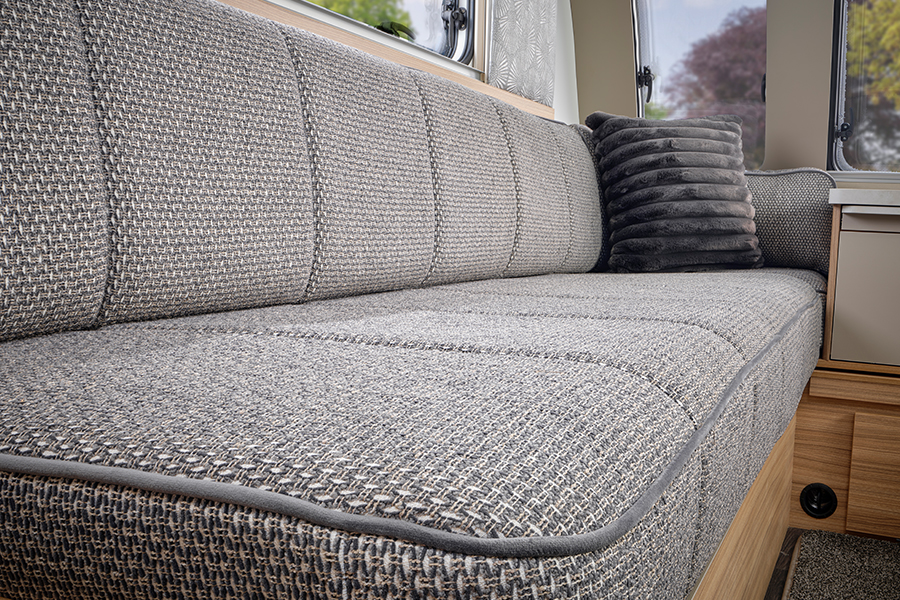

• NEW Optional ‘Lima’ soft furnishings with practical Aquaclean fabric, co-ordinating curtains, two bolster cushions and two scatter cushions
• Conventional sprung cushion construction with fully sprung knee rolled base cushions and foam filled back rests all featuring premium quality fabrics
• Beech slat seat bases with sprung hinged tops for extra comfort and ease of access
• Angled backrest and seat ventilation boards for enhanced comfort and heating efficiency
• Slatted front bed make-up system on easy-glide track

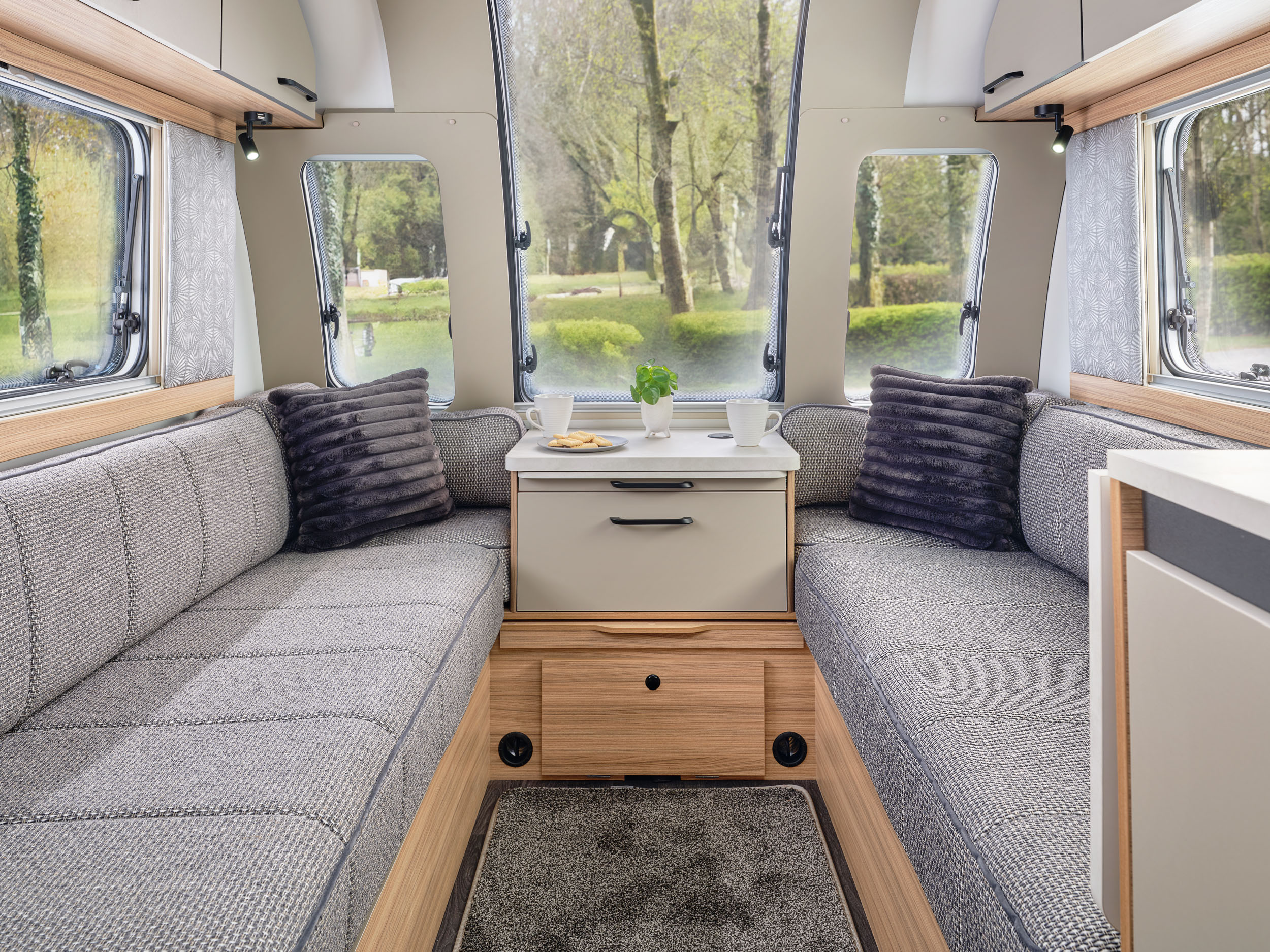

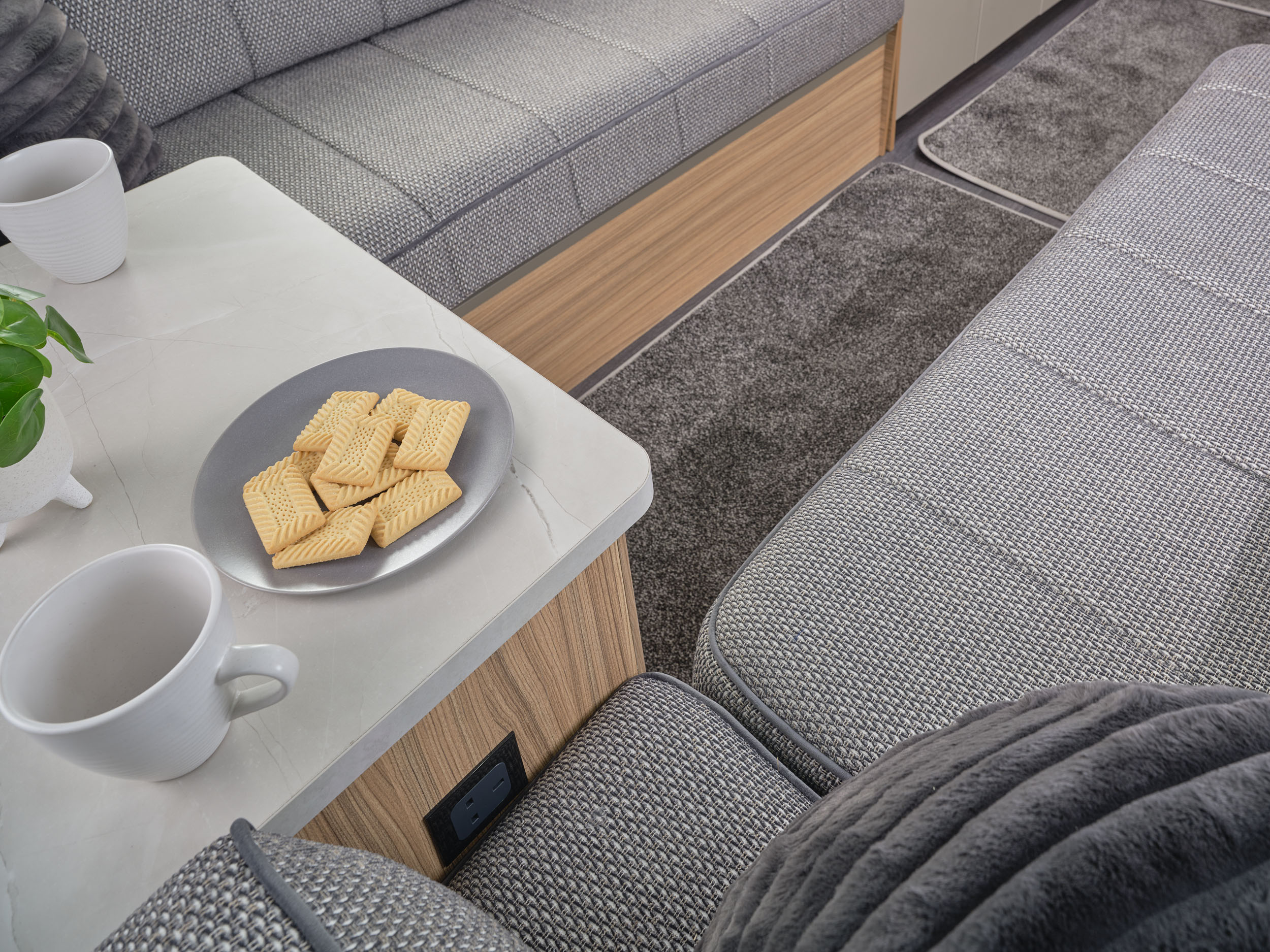

• Two-drawer front chest with slide out occasional table and soft close drawers
• Freestanding dining table in Bailey ‘Light Oak’ finish with dedicated storage location
• NEW ‘Midnight’ split section loose fit drop in carpets
• ‘Dark Oak’ finish durable floor vinyl
• Entrance door mat

• Status 570 telescopic directional digital television aerial
• Up to two TV stations with 230v, 12v and aerial sockets
• SONOS portable speaker
• Pre-wired for optional roof mounted Avtex mobile wi-fi system (Retailer fit cost option)

• NEW ‘White Sandstone’ kitchen worktop laminate finish
• NEW ‘White Sandstone’ full kitchen splash back
• NEW Drop down hob cover worktop in matching ‘White Sandstone’ finish
• Stainless steel round kitchen sink with concealed fixings and mixer tap
• ‘Warm Grey Marble’ kitchen splashback
• Bailey ‘Stone Grey’ and ‘Light Oak’ kitchen units featuring chrome finish catches and handles
• Dometic 103 litre refrigerator with 12 litre freezer compartment
• Thetford combined oven, grill and hob with electronic ignition and flame failure device
• NEW Thetford dual-fuel hob with electric hotplate and three gas burners
• Branded flatbed microwave oven with digital controls

• Bailey ‘Light Oak’ and ‘Satin Cashmere’ bedroom furniture
• ‘Warm Grey Marble’ cabinet surfaces (model specific)

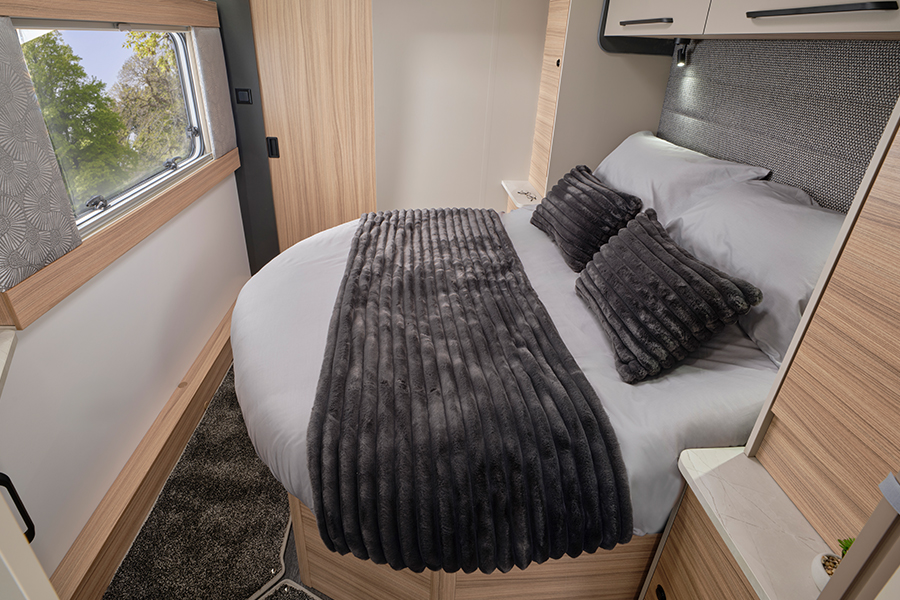

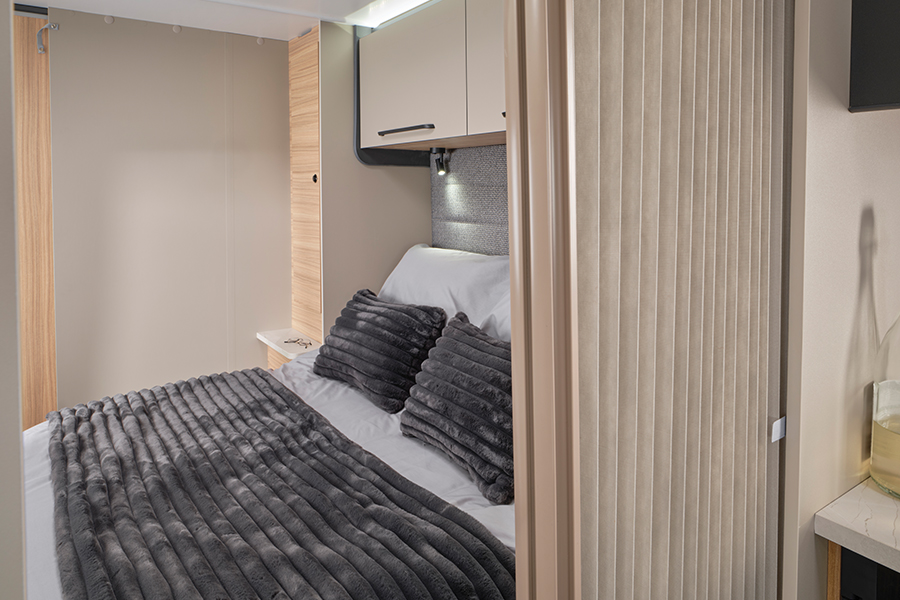

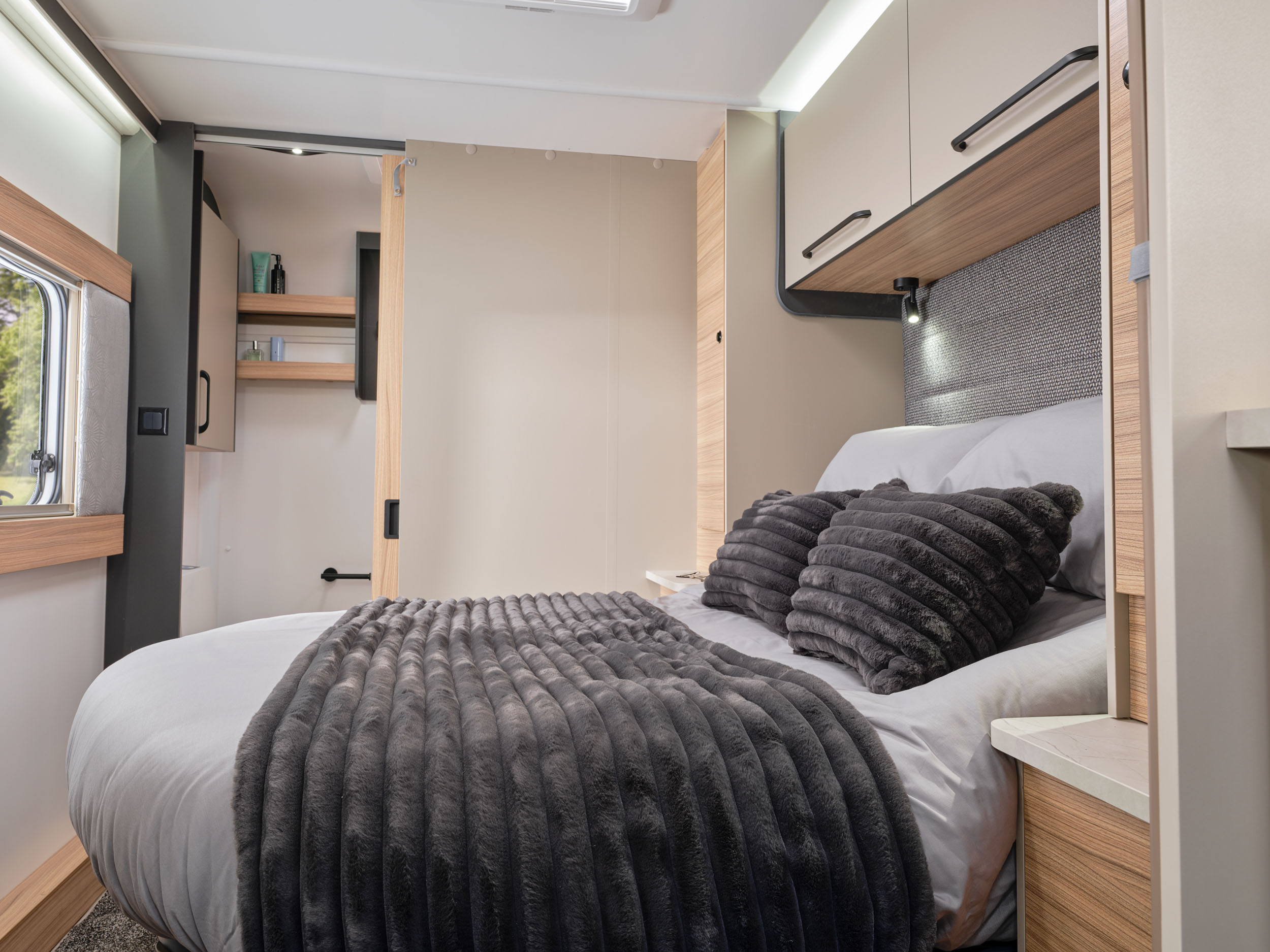

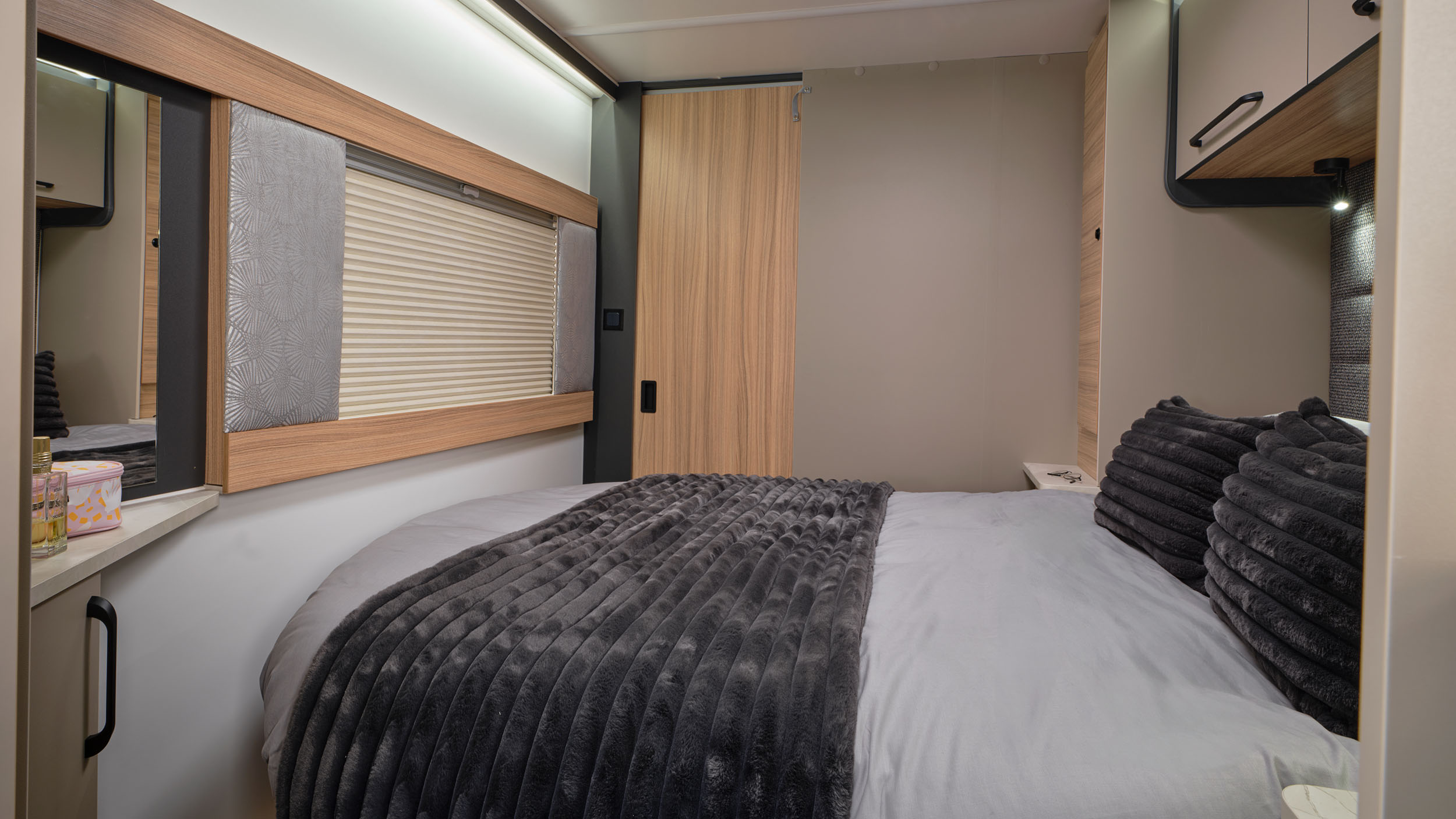

• Aluminium fixed bed frames with sprung beech slat bases and hinged tops for enhanced comfort and ease of access to under bed storage spaces (model specific)
• Superior foam fixed island bed mattress construction (model specific)
• NEW Full width soft touch fixed bed headboards (model specific)
• Twin wardrobes with bedside storage units beneath (model specific)
• Wall mounted vanity mirror

• Bailey ‘Light Oak’ and ‘Satin Cashmere’ bathroom furniture with ‘Cashmere’ work surfaces, decorative splash back and integral storage
• Wall mounted vanity cupboard and wall mounted full height mirror
• Onboard shower with fitted shower tray, Ecocamel shower head, riser bar and combination mixer tap
• Gloss white shower cubicle with bi-fold partition door and integral lighting
• Belfast style washroom hand basin with mixer tap
• Two wall mounted towel hooks
• Mini Heki rooflight with night blind
• Thetford 12v electric flush toilet with removable cassette on wheels

• Electrical control unit with simple controls for heating and hot water systems
• 230v power inlet for mains hook up with 25 metre mains connecting lead
• 230v power supply with up to six interior sockets and four USB points
• Wireless charging pad with two integrated USB points
• Switch mode battery charger with 20amp output
• 12v internal LED task and ambient lighting system including ceiling mounted down-lighters and directional spotlights
• Pre-wired for optional motor mover fitment (Retailer fit cost option)

• Truma Combi 4 heating and hot water system (all models)
• Dual fuel 2.0kw gas and up to 1.8kw electric power sources
• Digital control panel with adjustable fan and water boost function
• Dual fuel 4.0kw gas and up to 1.8kw electric power sources
• Digital control panel with adjustable fan and water boost function
• Provision for 2 x 11kg gas bottles with fitted butane/propane 30mb gas regulator in dedicated locker compartment
• Pressurised hot and cold freshwater system with Whale high flow self-priming submersible pump
• Inboard rigid pipe waste plumbing system

• AL-KO AKS 3004 stabiliser
• AL-KO secure wheel lock receiver (AL-KO secure portable wheel lock available at extra cost)
• WSL individually laser balanced wheels fitted with premium tyres and anti-tamper WSL safety bolts
• Interior floor mounted spare wheel (steel wheel) and cover
• High security exterior door lock with one-key operation throughout
• CRiS identity number anti-tamper labels attached to windows and inside gas locker
• Concealed security data chip within caravan construction
• Smoke alarm and carbon monoxide alarm
• European Whole Vehicle Type Approved to be European Standard compliant and certified by the National Caravan Council

Optional Extras

• AL-KO ATC trailer control system (Factory fit)
• AL-KO Secure portable wheel lock (Retailer fit)
• Truma 130-watt lightweight flexible solar panel (Retailer fit)
• Avtex mobile wi-fi system (Retailer fit)
• ‘Lima’ soft furnishings with Aquaclean fabric (Factory order)
